Building a pool on sloped yard can feel like a far-fetched idea. Many homeowners think it’s too difficult to try. But you can definitely make it happen with good planning and expert help.
Your sloped yard or hillside can actually create amazing opportunities for pool installation. These projects often result in beautiful designs that include infinity edges and multi-level terracing. The construction costs will be higher than regular ground-level pools because you need more digging and leveling work. This is a big deal as it means that you’ll need proper budgeting, but the end result can change your tricky landscape into an amazing outdoor paradise.
Let us walk you through the process of building a pool on a hill. We’ll cover everything from engineering solutions to drainage systems. Your yard’s slope can become a design advantage that will boost your property’s value and appeal.
Assessing Your Sloped Yard for Pool Installation
Getting a full picture is your first significant step to turn your sloped yard into a pool paradise. Your hillside location’s unique features will help determine the best pool installation approach and prevent surprises that could get pricey later.
Measuring the degree of slope
You need to know exactly how steep your yard is before starting any pool project on a hillside. Many homeowners don’t realize their property’s true grade and mistake significant slopes for minor inclines.
Here’s how to measure your slope accurately:
- Place four stakes in the corners of your planned pool area
- String separate level lines between each stake, including diagonals
- Measure the vertical distance between the string and ground at various points
This simple exercise shows what your terrain really looks like. What looks like a “slight slope” might actually vary by 12 to 24 inches or more. Your gradient directly affects structural needs – steeper slopes require more engineering solutions to stay stable.
Soil type and stability considerations
The ground under your future pool must hold up both the structure and water’s massive weight – often 200,000 pounds or more. A complete soil test matters for several reasons:
Soil stability assessment shows if your ground can handle excavation and support your pool over time. Clay soils, to name just one example, expand when wet and contract when dry, which can stress your pool’s structure.
Geological challenges like slope creep – soil’s slow, continuous downhill movement – can really damage pools. Most soil engineers believe slope creep affects the upper 5-8 feet of soil on slopes and might reach 10-16 feet from a descending slope’s top.
Professional geotechnical investigation before construction helps spot challenges that could affect your pool’s durability and structure.
Identifying natural drainage patterns
Water management becomes vital when building a pool on a slope. Watch how water flows during rainstorms. Look for areas where water collects and signs of erosion.
Your yard’s natural slope determines water movement speed across your property. A proper review shows:
- Existing drainage paths you must preserve or redirect
- Areas where water tends to collect
- Possible erosion risks around your planned pool site
This knowledge ensures your pool installation works with natural water flow, protecting both your pool and landscape. Note that your pool needs to sit high enough to prevent water from running onto the patio.
Setting a realistic budget based on slope challenges
Sloped yard pool construction costs more than level ground projects. Excavation costs range from $3,400 for standard sites to $20,000 for challenging hillside locations.
Your budget should include:
- Major earthmoving costs
- Retaining walls (you’ll likely need them on slopes)
- Extra engineering requirements
- Special drainage solutions
Cutting into the hillside instead of building up usually provides better stability and function. This approach reduces your need for expensive retaining walls and extra fill dirt, which saves money.
A solid assessment of these four aspects of your sloped yard before construction creates a strong foundation for your project’s success. You’ll avoid unexpected issues that might derail your hillside pool dreams.
Engineering Solutions for Building a Pool on a Hill
Building a pool on a sloped yard takes special engineering know-how that works with the land’s natural shape. Our experience with hillside pools shows that the right technical solutions can turn tough sites into beautiful pool areas.
Cut and fill grading techniques
The cut and fill method remains the quickest way to create level areas on slopes. This method takes soil from higher spots (cutting) and uses it to build up lower areas (filling). We’ve found this to be an economical solution since you don’t have to move soil in or out of the site.
A strategic cut into the hillside with proper retention creates a solid foundation for your pool at a reasonable cost. The digging usually costs $60.00 to $200.00 per cubic yard of dirt. These prices change based on how steep the slope is and what type of soil you have.
Cut and fill land grading brings two big benefits: it creates stability and helps water drain properly. These are crucial for any pool, but they matter even more on slopes where water naturally runs downhill.
Retaining wall options and materials
Retaining walls are the backbone of hillside pool projects that keep soil from eroding into your pool area. These walls hold back earth on the high side while supporting the structure where the ground dips.
Here are the popular retaining wall materials:
- Segmental retaining walls: Pre-cast concrete blocks stacked without mortar, offering an attractive and budget-friendly solution
- Masonry walls: Either poured concrete or concrete block faced with stone, providing elegant esthetics with superior durability
- Boulder walls: Natural stone creates a rugged, organic appearance that complements naturalistic pool designs
Most hillside pool projects just need retaining walls that cost between $7,000 and $20,000+. This investment creates opportunities for waterfalls, seating areas, and other beautiful features.
Terracing strategies for steep slopes
Single retaining walls don’t work well on very steep slopes. We use terracing instead to create a series of flat shelves or step-like areas. This approach turns sharp slopes into usable spaces.
Terracing makes the ground more stable and reduces erosion while creating multiple flat areas at different heights. You get practical benefits plus unique design options like multi-level decks or cascading water features that flat land can’t offer.
Foundation requirements for hillside pools
Hillside pools need special foundation work to stay stable over time. The International Building Code says pools near downward slopes must have walls that can hold water without soil support – what we call “freestanding walls”.
The pool bottom should sit back from the slope’s face at a distance equal to the slope’s total height divided by six. We recommend at least 15 feet. This setback stops uneven settling that could crack your pool.
We often dig footings deeper or build keys under the outer wall to make foundations more stable on hillsides. These changes prevent slope creep effects that could make your pool settle, rotate, and crack as time passes.
Managing Water and Drainage on Sloped Pool Sites
Building a pool on a hillside creates unique water management challenges. Your pool’s longevity and structural integrity depend on proper drainage and erosion control.
Preventing erosion around your pool
Unchecked erosion can weaken your pool’s foundation. The ground may shift or erode when water soaks the surrounding soil due to poor drainage. Your pool shell or tiles might crack, and repairs can get pricey.
These proven solutions help curb erosion:
- Deep-rooted plants around the pool area stabilize soil and slow down water flow
- Erosion control blankets protect bare soil on steep sections until plants grow
- Strategic retaining walls create stable zones and stop soil movement
Steep hillsides need jute netting pulled tight and secured with landscape staples. This gives excellent temporary stability while new plants take root.
Designing effective drainage systems
Slope-based pools need smart drainage solutions. Watch how water flows during rainfall to spot areas where it pools or runs off too fast. This knowledge helps you plan better.
Channel drains excel at collecting rainwater at the bottom of slopes. Plants can hide these narrow drains, keeping your landscape looking natural. Complex situations might need French drains with perforated pipes in gravel boxes to redirect water from trouble spots.
Your drainage system should handle water movement smoothly. This means getting the substrate slope right and adding a continuous drainage layer between the waterproofing membrane and pool liner. Waterproofing membranes and drainage layers should connect to separate internal drains at the lowest point, away from main pool drains.
Waterproofing considerations for hillside installations
Hillside pools face pressure from two water sources: groundwater behind the structure and pool water. Without proper waterproofing, both can threaten stability.
Bentonite sheets work great for below-ground structures with groundwater. They expand when wet, creating a seamless, waterproof barrier. Factory-made sheet membranes suit surfaces that might move better than bonded waterproofing membranes, which can tear over moving cracks.
Critical points need extra attention:
- Light fittings and water circulation parts
- Ladder and handrail clamps
- Service points that pierce the membrane
Make sure the waterproofing membrane reaches several inches above the predicted water level.
Handling runoff during heavy rains
Hillside pools need special planning for heavy rainfall. Swales and diversion channels placed strategically guide stormwater safely across your landscape to drainage points. These gentle, shallow ditches reduce runoff speed and keep water away from your pool.
Sandbags stacked like stairs offer temporary protection during big storms by redirecting water from your property. Steep terrain might need dry wells—large 50-gallon storage tanks—in spots where water collects.
Smart stormwater management looks at your entire property. You should think about how water moves across all areas during rainfall, not just around the pool.
Cost Factors Unique to Swimming Pool on Sloped Yard
Building a pool on a sloped yard is different from building one on level ground. You need to know these unique cost factors to set realistic expectations and avoid budget surprises during your hillside pool project.
Excavation and earthmoving expenses
A hillside pool excavation costs between $1,000 and $5,000 for simple projects. Challenging terrains with boulders or rock ledges can push costs up to $15,000 to $20,000. Unlike flat ground installations, sloped sites need specialized heavy equipment like mini excavators or backhoes that cost $100 to $300 per hour to rent.
Your project’s cost increases with the steepness of your yard. Land clearing costs range from $1,400 to USD 5,800, and hard-to-reach areas cost more. Soil testing, which you must have for hillside installations, adds $700 to USD 2,200 to your budget.
Retaining structure investments
Retaining walls are the most important expenses unique to hillside pool projects. Pool owners typically spend $7,000 to $20,000+ on retaining structures, based on size, materials, and complexity.
Taller walls need stronger foundations and extra reinforcements. A 6-to-8-foot retaining wall runs about $120 to $400 per linear foot. Taller 10-to-20-foot structures cost $200 to $1,000 per linear foot. Proper drainage behind retaining walls adds $10 to $30 per linear foot.
Additional engineering requirements
Hillside pools need specialized engineering that flat-ground pools don’t require. Structural engineers or landscape architects charge $100 to $220 per hour to create designs that work with slope challenges.
Sloped yard pool permits cost $50 to $450, plus property line survey fees ($200 to $1,200). The International Building Code requires specific construction standards for pools near descending slopes, and you might need deeper foundations or extended footings that increase overall costs.
Long-term maintenance cost considerations
Regular pool maintenance costs range from $960 to $1,800 yearly, but hillside installations face unique long-term expenses. Waterproofing costs $2 to $10 per square foot, and it’s crucial to prevent leaks and structural damage on slopes.
Slope creep, the slow downhill movement of soil, causes most structural problems in hillside pools. This requires constant watchfulness and sometimes expensive repairs. You should plan for $3,000 to $6,000 annually for complete maintenance, including drainage system upkeep and erosion prevention that flat-ground pools don’t need.
Turning Slope Challenges into Design Advantages

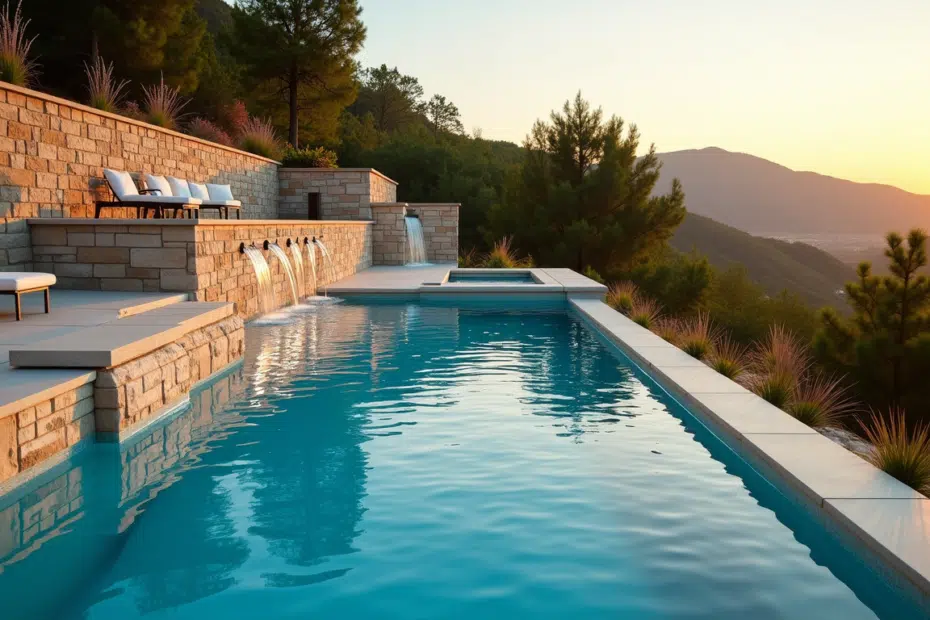

Image Source: https://pexels.com/
Most people see obstacles, but I see opportunities in designing pools on sloped yards. The hillside terrain creates possibilities that flat properties can’t match. These landscaping challenges become extraordinary design features.
Creating dramatic infinity edges
Sloped yards are perfect for infinity edge pools that create an illusion of water stretching into the horizon. The design needs at least a couple of feet of elevation change to work properly. Water flows over one edge into a hidden catch basin below and pumps back into the main pool.
Properties with spectacular views make infinity edges look exceptional as the pool blends with the surrounding landscape. The natural slope reduces construction costs compared to creating artificial elevation.
Multi-level deck and patio opportunities
A terraced sloped yard creates distinct, usable spaces that improve functionality and visual appeal. Multi-level decks create clear “zoning” for different activities – dining areas, lounging spaces, and fire pit gatherings.
Steps connect each tier and create a natural flow throughout the outdoor space. The elevation changes bring advantages that flat yards don’t have:
- Perfect spots to install waterfalls, slides or hot tubs
- Better sun exposure to relax and tan
- More visual interest than a single flat surface
Incorporating waterfalls and water features
Hillsides create ideal conditions for dramatic water features. The existing slope becomes a foundation for waterfalls and slides, making use of otherwise unused space. These features solve steep terrain challenges while creating impressive backyard features.
Natural gradients allow multi-level water cascades that would need artificial structures on flat land. Rocks placed strategically guide water flow and create drops that improve the visual and sound experience.
Enhancing privacy with strategic placement
Sloped yards give unique privacy advantages to pool areas. Pools placed lower on hillsides get natural shelter from the terrain. Smart placement maximizes views while reducing exposure to neighboring properties.
Tall trees (15-20 feet) screen pools on lower levels from neighbors with elevated views. The natural elevation changes create barriers that improve privacy without needing extensive additional structures.
Conclusion
A sloped yard creates unique challenges for pool construction. Smart planning and expertise can turn these challenges into amazing opportunities. Professional engineers can help design water management systems that reshape your hillside into a stunning aquatic retreat.
Sloped yard pools cost more than standard installations. However, they offer incredible design options that flat properties simply can’t match. Features like infinity edges, multi-level decking and natural waterfalls improve your property’s value and visual appeal substantially.
Your project’s success depends on proper preparation and expert guidance. The first step is to understand your slope’s grade, soil composition and drainage patterns. Working with qualified engineers and contractors who know hillside pool requirements is crucial. This project needs careful planning and extra investment, but the end result will be a remarkable outdoor space that combines technical excellence with stunning esthetics.
